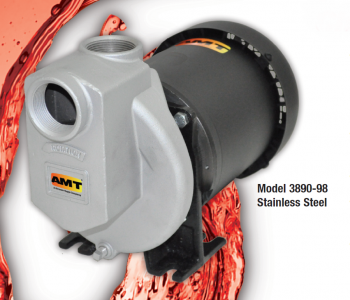

AMT Self-Priming 300 Series Stainless Steel or Bronze Centrifugal pumps are designed for a wide range of applications including chemical processes, waste water treatment and pumping agriculture fertilizers/fumigants. All models are equipped with Totally Enclosed Fan Cooled (TEFC) motors. 300 Series Stainless Steel models are fitted with Teflon? mechanical seal and o-ring, while bronze models come standard with Viton? mechanical seal and o-ring. Pumps are self-priming to 6 feet. Pumps are designed to handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU. Additional Features
• 3/4 to 2 HP Totally Enclosed Fan Cooled (TEFC) Motor Single or Three Phase Motor
• Pedestal Models Feature Epoxy Coated Bearing Housing with 3/4" Diameter Stainless Steel Shaft with 3/16" Keyway and Sealed Ball Bearings
• Designed to handle liquids of specific gravities up to 1.3
• Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP; Contact for info and lead time!
• 3-Phase models can also operate on 50 Hz (This will change full load amps and service factor, RPM and priming capabilities).
• NOTE: Electric supply for ALL motors must be within ?10% of nameplate voltage rating (e.g. 230V ?10%= 207 to 253).
1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability 2Image may not reflect actual product - Double check the AMT catalog for accurate product information.
