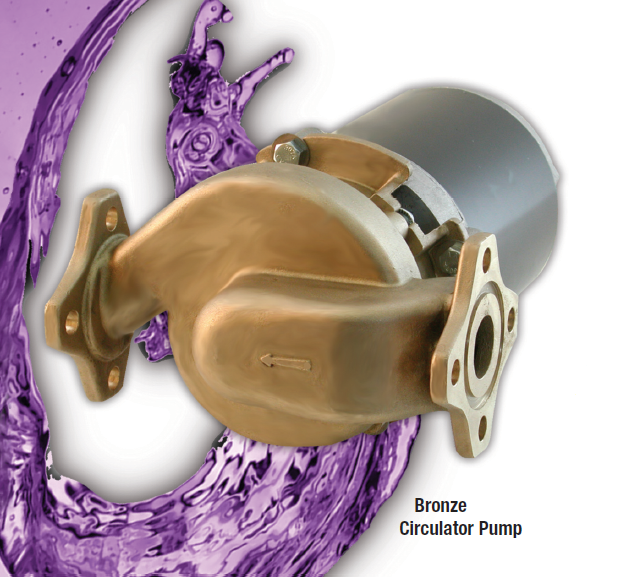

Cast Iron or Silicon Bronze Construction Additional Features
• 1/8'' NPT Seal Wash/Vent Port Shipped Plugged
• Close Coupled Design Reduces Maintenance Requirements
• Stainless Steel (300 Series) Motor Shaft
• Inline Centered Design, Centerline of Ports In Line with Motor Shaft

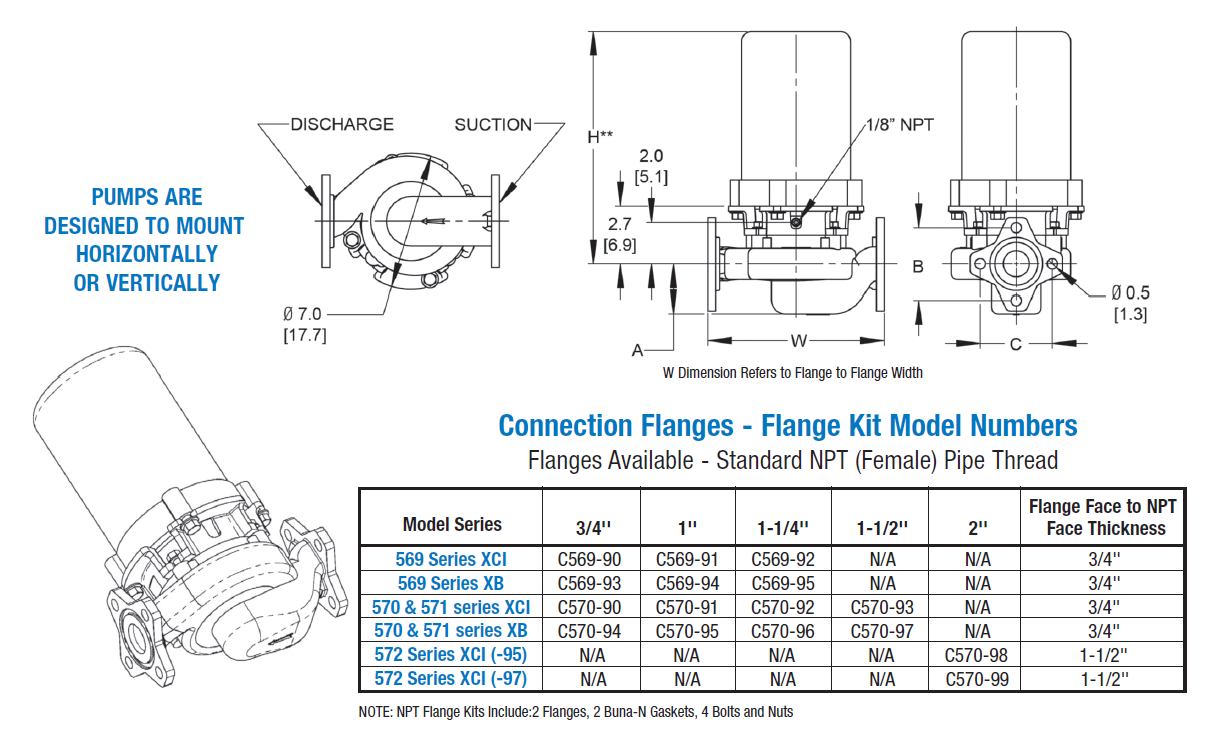

• Pumps are designed to mount horizonatally or vertically
• 3-Phase models can also operate on 50 Hz (This will change full load amps and service factor, RPM and priming capabilities).
• NOTE: Electric supply for ALL motors must be within ?10% of nameplate voltage rating (e.g. 230V ?10%= 207 to 253).
1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability 2Image may not reflect actual product - Double check the AMT catalog for accurate product information.
