Pump, Diaphragm, 1/4 In

Pump, Diaphragm, 1/4 In

Tech Specs:

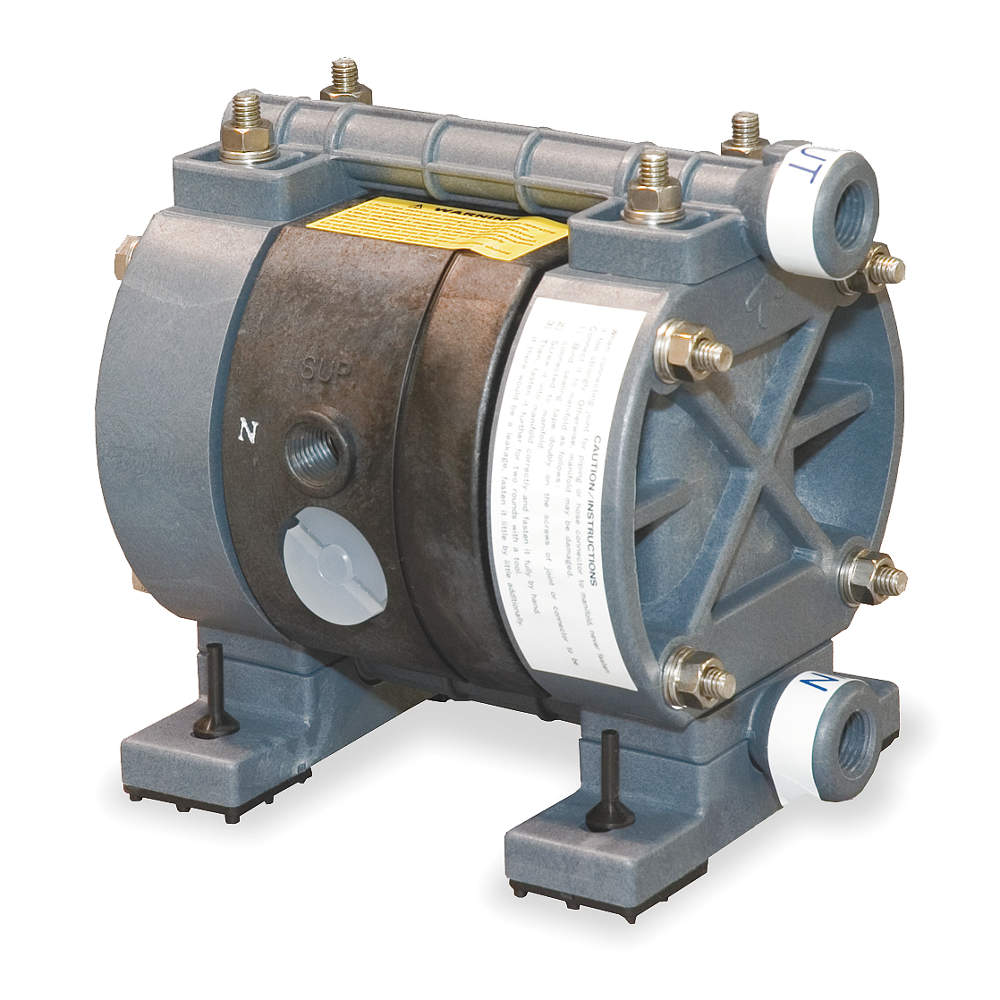

• Item: Double Diaphragm Pump
• Operation Type: Air Operated
• Valve Type: Flat
• Body Material: Acetal
• Inlet/Outlet Size: 1/4"
• Connection Style: NPT
• Air Inlet Size: 1/4" FNPT
• Max. Flow GPM: 3.25
• Max. Operating Pressure: 100 psi
• Max. Temp.: 180 Degrees F
• Diaphragm Material: PTFE
• Ball Material: PTFE
• Check Seat Material: Acetal
• Max. Dia. Solids: Clear Liquid
• Manifold Connection: Single
• Length: 6"
• Width: 5-7/8"
• Height: 5-51/64"
• Self-Priming Dry: 5 ft.
• Self-Priming Wet: 28 ft.
• Manufacturers Warranty Length: 1 yr.
