Sized From Minimum 3 HP to 15 HP Driver at 3,600 RPM, Depending on Model

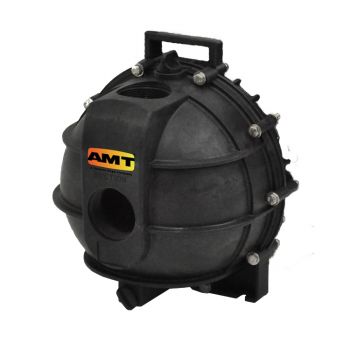

AMT Self-Priming Solids Handling Pedestal pumps are designed for direct or belt drive. Specific units are available in cast aluminum, cast iron or thermoplastic construction material. The units feature 3/8" to 2" solids handling construction and are fitted with a cast iron bearing housing, which contains two or three precision sealed ball bearings depending on specific model. Easy cleanout design by removing casing bolts permits removal of debris without disconnecting hoses. The 3" & 4" trash pump models feature cleanout covers with quick release handles for removal of debris. All units are self-priming to 20 feet.
Standard Features:
• Thermoplastic Construction
• Buna-N Check Valve and O-rings
• 2" NPT Suction & Discharge Ports
• Maximum Working Pressure 60 PSI
• Maximum Temperature 130° F
• Self-priming to 20 Ft.
• 2" Dewatering Construction
• 1/4" Diameter Solids Handling Capability
• Heavy Duty Cast Iron Bearing Housing Containing (2) Precision Sealed Ball Bearings
• 3/4" Diameter CNC Machined Shaft
• 1-3/8" x 3/16" x 3/32" Keyway 1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability 2Image may not reflect actual product - Double check the AMT catalog for accurate product information.
