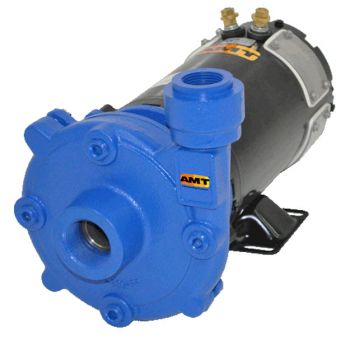

AMT 12DC-98 - 12v DC High Head Washdown Pump

This unit replaces AMT model no. 489G-98

AMT 12 Volt DC Washdown pumps are designed for OEM, septic service, pumper and marine applications requiring a DC motor. The motor has a one hour duty rating and is furnished with a stainless steel shaft. This washdown duty pump is available in a variety of construction and seal materials to meet your specifications. Pull-from-rear design for easy servicing without disturbing any piping. High efficiency impeller maximizes performance.

Pumps are not self-priming and require flooded suction. Units are not submersible in liquids. All units are for use with non-flammable, non-abrasive liquids compatible with pump component materials.

• 300 Series Investment Cast Stainless Steel and Cast Iron with Stainless Steel Impeller Construction
• Viton® Mechanical Seal and O-Ring with Stainless Steel Models
• Buna-N Mechanical Seal and O-Ring with Cast Iron Models
• Discharge Port Rotates in 90° Increments
• (4) Front Drain Plugs

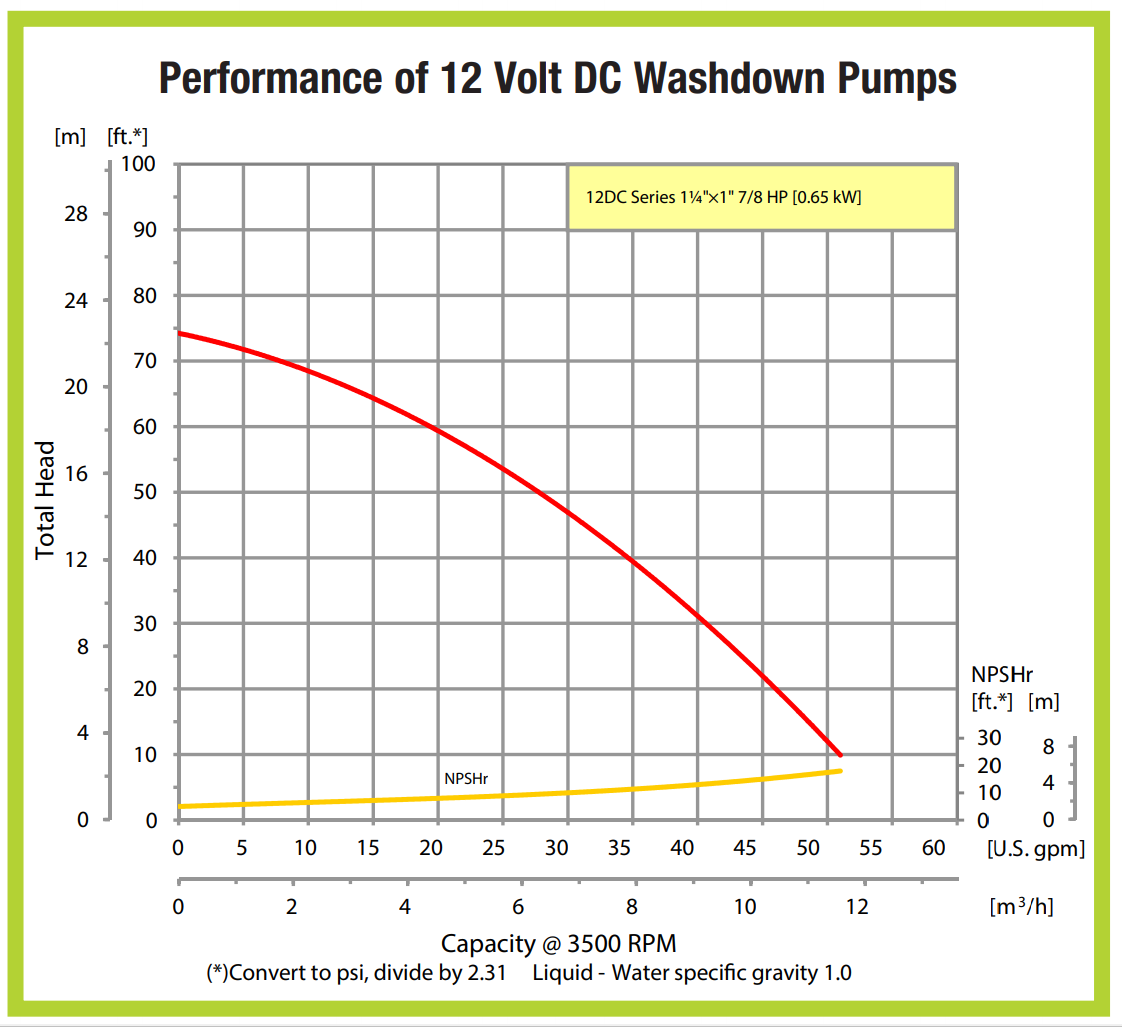

• Maximum Flow 56 GPM
• Maximum Head 80 Ft. (35 PSI)
• High Efficiency Closed Impeller
• Maximum Solds Handling Capacity: 3/16" Diameter
• 7/8 HP 12 Volt DC Premium Washdown Duty Motor for Severe and Damp/Wet Operating Conditions
Call for Price

Premium 12 Volt DC washdown duty motors are built to handle washdown and damp/wet environments. The motor features epoxy paint, condensate drains, interior coating to protect against moisture or corrosion, special shaft seals to retard water, 12 Volt DC stud connections with o-ring seals, oversized brushes assuring longer brush life and base mount.

NOTE: Electric supply for ALL motors must be within 10% of nameplate voltage rating (e.g. 230V 10%= 207 to 253).

1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability
2Image may not reflect actual product - Double check the AMT catalog for accurate product information.
