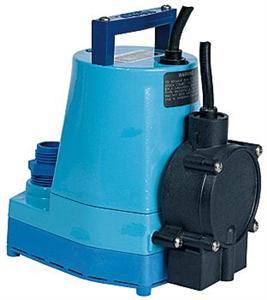

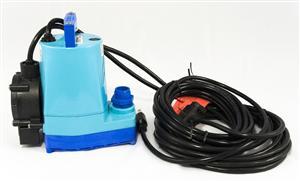

Submersible Utility Pump w/ Diaphragm Switch

Automatic submersible utility pump with oil-filled motor and epoxy-coated cast aluminum housing. For commercial, industrial and home applications where liquid must be transferred or recirculated. Pumps down to 1/8" in manual-mode operation. This 1200 GPH pump features a 1"-in. FNPT discharge with garden hose adapter, 26.3'-ft. shut-off head capability, and screened inlet.

Product Bulletin

Product Specs

Product Description

• 1/6 hp shaded pole motor with overload protection
• Designed for continuous duty
• Pumps down to 1/8"
• Garden hose adapter
• Removable inlet screen for easy cleaning
• Epoxy coated cast aluminum housing
• Viton shaft seal
• Multiple switch options for automatic operation
• 380 watts
• 26.3'-ft maximum lift
• 1"-in. FNPT discharge
• Thermal overload protection
• ASP On level: 6 - 9"-in., Off level: 1" - 4"
• ASP-LL On level: 2"-3", Off level: 1/2" - 1-1/2"
• Piggyback Diaphragm switch
• For submersible-use only.
