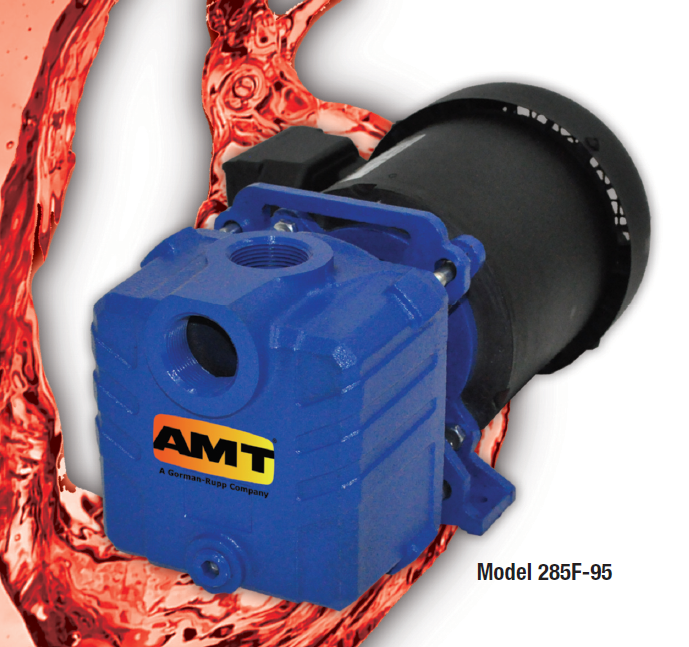

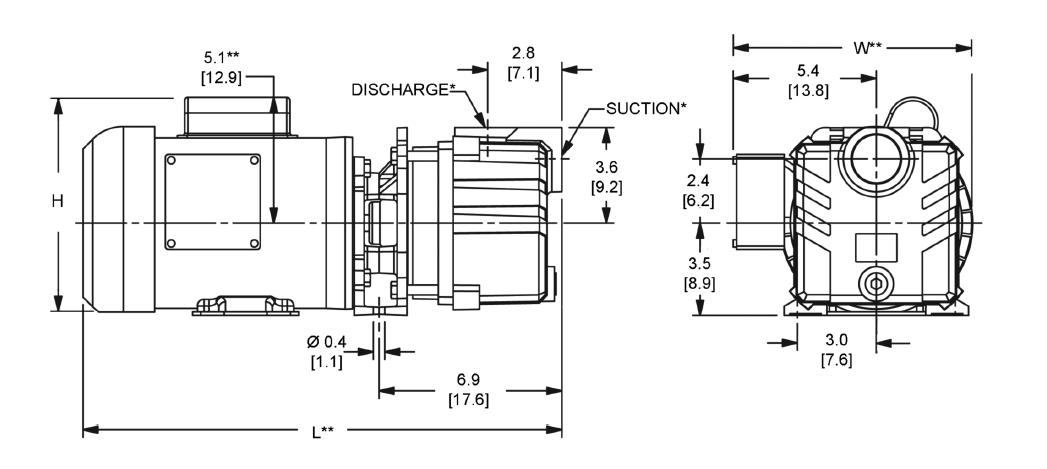

The AMT Self-Priming Cast Iron Centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open impeller. The units will selfprime to 20 feet. Mounting base features 7/16" mounting holes, which are 6" OC (on center). Built-in carrying handle offers portability. Additional Features
• 1/3 to 2 HP Single or Three Phase Motors (ODP or TEFC)
• Dual Volute Design Reduces Radial Load on Motor
• Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP; Contact for info and lead time!
• 3-Phase models can also operate on 50 Hz (This will change full load amps and service factor, RPM and priming capabilities).
• NOTE: Electric supply for ALL motors must be within ?10% of nameplate voltage rating (e.g. 230V ?10%= 207 to 253).
1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability 2Image may not reflect actual product - Double check the AMT catalog for accurate product information.
