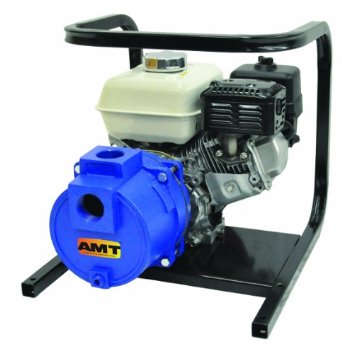

AMT 4789-95 1-1/2" Engine Driven Two Stage High Pressure Pump
Cast Iron Construction with Stainless Steel Closed Impellers
Buna-N Mechanical Seal and O-Ring
1-1/2" NPT Port Size
Self-Priming - Requires Foot Valve (included) above 10 Ft.
Engine Options: Honda or Briggs and Stratton

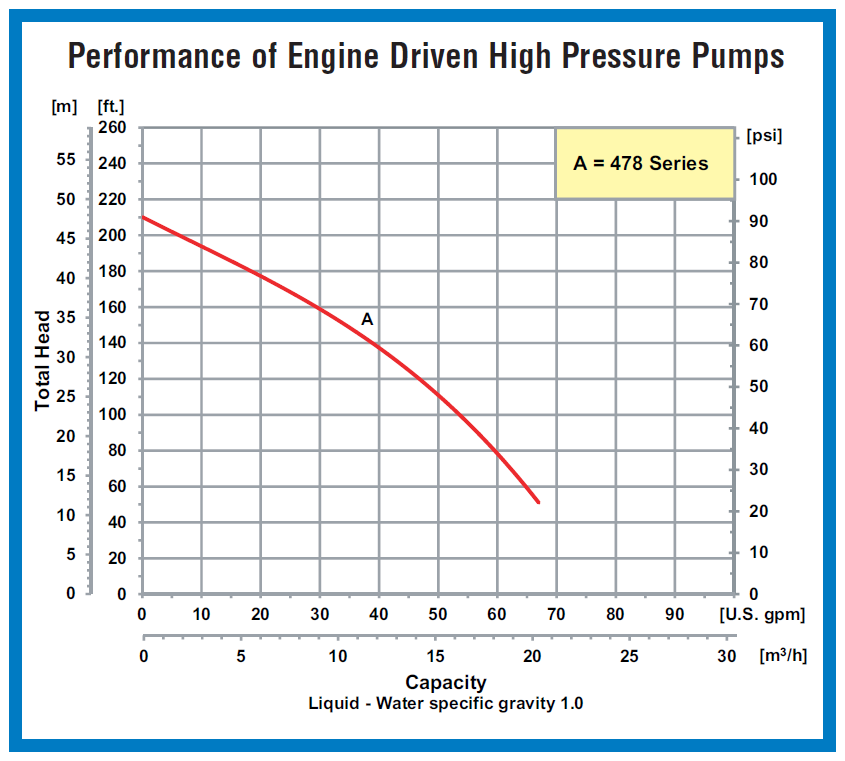

Maximum Flow up to 68 GPM
Maximum Head up to 90 PSI
Heavy Duty Steel Roll Frame Included
Wheel Kit Available
The AMT line of Engine Driven High Pressure pumps is designed for lawn sprinkling, agricultural spraying, dewatering, fire fighting, emergency water supply and pressure boosting. Two-stage models feature cast iron diffusers and 300 series stainless steel investment cast impellers for high efficiency producing up to 90 PSI that generally requires 8 horsepower or more from a single stage pump. Pumps offer a broad selection of gasoline engines from the leading engine manufacturer with dependable service worldwide. All models include: cast iron pipe nipples, 90° discharge elbow, strainer/foot valve and rugged heavy duty steel roll frame for protection and durability.
Standard Features:
• Buna-N Mechanical Seal and O-ring
• Stainless Steel High Efficiency Closed Impellers
• Two NPT Pipe Nipples & 90° Discharge Elbow
• Self-primes to 10 Ft. Without Foot Valve
• Replaceable Volute/Diffuser
• Maximum Temperature 180° F
• Maximum Working Pressure 150 PSI
• Delivers up to 68 GPM
• Strainer/Foot Valve Included
• Optional Wheel Kit Available
Manufacturer Disclaimer: "*Hp Class: Indicates classification for marketing purposes and does not indicate actual engine horsepower. Contact engine manufacturer for actual HP specifications." 1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability 2Image may not reflect actual product - Double check the AMT catalog for accurate product information.
