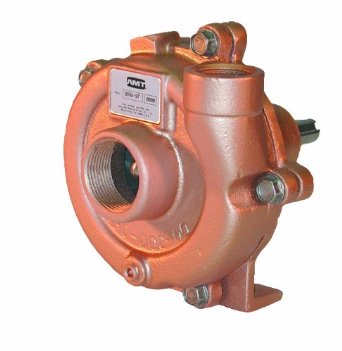

AMT 3682-95 Straight Centrifugal Pedestal Pump - Cast Iron Construction with Stainless Steel Impeller and Buna-N Seals
AMT Straight Centrifugal Pedestal pumps are designed for continuous duty OEM, Industrial/ Commercial and processing applications including: circulation, chemical processing, liquid transfer, heating and cooling. The high head models are ideal for sprinkler systems and pressure boosting. These units are available in a variety of construction and seal materials. Pull-from-the-rear design permits easy servicing without disturbing any piping. Pedestals feature CNC machined shafts with sealed ball bearings. Models 4897 and 4906 pedestal drive are epoxy coated and include stainless steel shafts.
Standard Features:
• 300 Series Investment Cast Stainless Steel, Stainless Steel Fitted Cast Iron or Cast Bronze Construction (See Pricebook for Specific Model Availability)
• Maximum Temperature:
• Buna-N: 180° F
• Viton®: 200° F

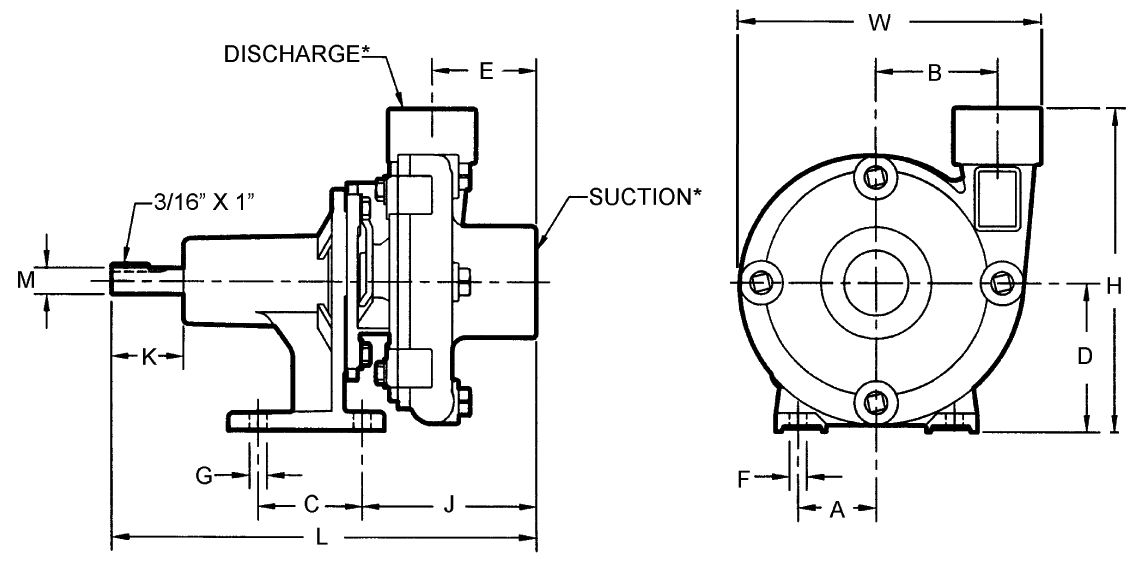

• 3/4" to 1-1/2" NPT Suction Ports
• 1/2" to 1-1/4" NPT Discharge Ports
• Maximum Working Pressure: 75 PSI
• Self-cleaning Impeller

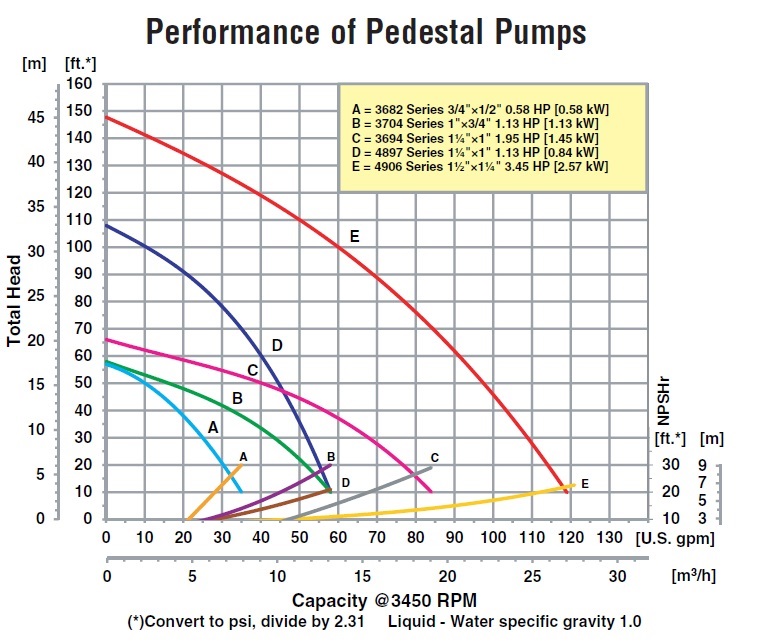

• Maximum Flow 118 GPM
• Maximum Head 148 Ft. 1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability 2Image may not reflect actual product - Double check the AMT catalog for accurate product information.
