Silicon Carbide Mechanical Seal and Buna-N O-Rings and Check Valve
6" NPT Port Size
Self-Priming to 20 Feet
Maximum Solids Handling 3"
Patented Unique Slide MechanismPermits Complete Service of Pump Without Removing Hoses or Removing Pump Components from Trailer
Seal Wash Feature for Extended Seal Life

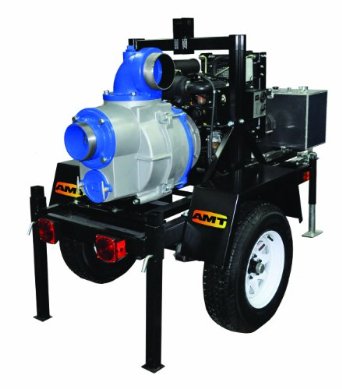

The AMT 6" Engine Driven Trash Pump is designed for applications requiring high volume flow and solid/debris handling capabilities. Pump is constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented built-in slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from trailer. Digital tachometer/hourmeter installed. Requires 12 Volt Battery: BCI Group 24, Minimum of 500 CCA (Cold Crank Amps) Battery Box Cables Setup for Automotive Post Type Connection.
ELECTRIC START, REQUIRES 12 VDC; BCI GROUP 24, MIN. 500 CCA BATTERY
Standard Features:
• Cast Aluminum with Cast Iron and Stainless Steel Components for Long Lasting Durability
• Silicon Carbide/Viton® Mechanical Seal and Buna-N O-rings and Check Valve
• Built-in Check Valve for Fast Priming to 20 Feet
• Maximum Solids Handling 3?
• 6" NPT Port Size

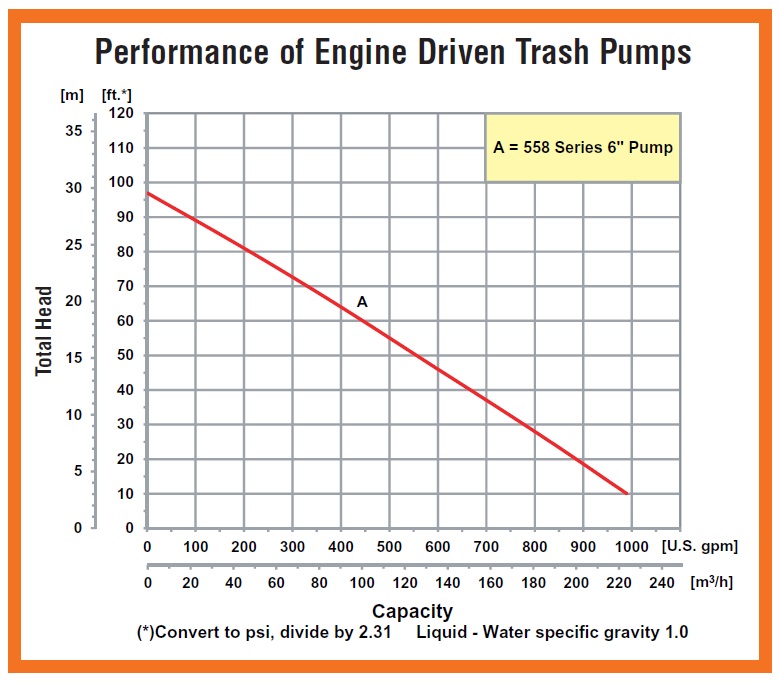

• Delivers up to 1,000 GPM
• Digital Tachometer/ Hourmeter Installed
• Maximum Temperature 180° F
• 12 Volt DC Electric Start
• D.O.T. Approved Trailer? Refer to Your State and Local Codes for Registration
• Easy Cleanout and Service Features with the Unique AMT Patented Slide Mechanism
• Steel Suction Strainer and Nipple Included
• Seal Wash Feature for Extended Seal Life Maximum Solids Handling Capacity: 3? Diameter
Manufacturer Disclaimer: "*Hp Class: Indicates classification for marketing purposes and does not indicate actual engine horsepower. Contact engine manufacturer for actual HP specifications." 1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability 2Image may not reflect actual product - Double check the AMT catalog for accurate product information.
